Roadway Distribution Details:
| Angle of Inclination for Mounting | IES Roadway Classification |
|---|---|
| 0° – 10° | Type-II |
| 11° – 20° | Type-III |

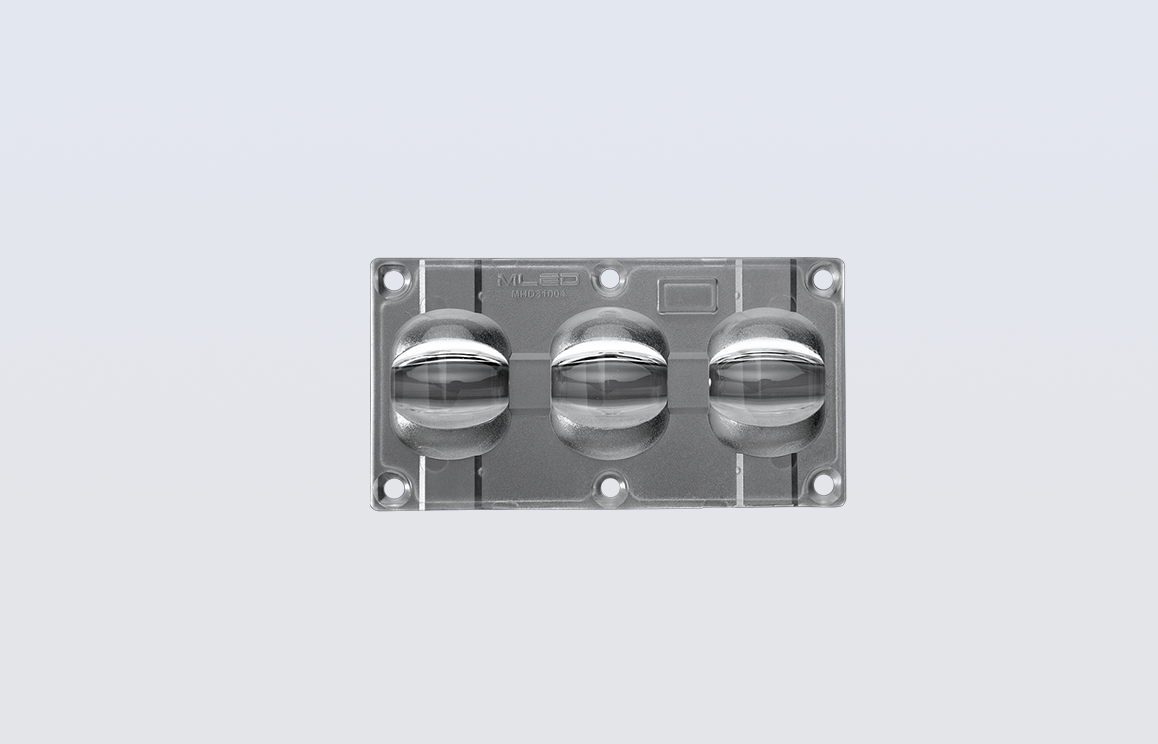

3in1 Cluster LED Lens for Street Light (IP Lens for 7070 LED Package)
This Lens is mainly used for LED Street Lighting Application.
LED Lens is in 3 in 1 cluster pattern, it can be easy to mount.
This Lens is IP Lens and suitable for 7070 LED Package.
We manufacture this lens and are capable of supplying any quantity as per customer requirement.
Below mentioned table will give a fair information on properties of LED Street Light Lens with different LED.
Datasheet can also be downloaded accordingly from the table.
LED Manufacturer | LED Model | FWHM Angle (°) Spread x Throw | FWTM Angle (°) Spread x Throw | Cd/lm | Efficiency (%) | Datasheet |
|---|---|---|---|---|---|---|
LUMILED | LUXEON 5050 | 122 x 76 | 151 x 123 | 0.60 | 89.7 | |
SAMSUNG | LH508A | 122 x 88 | 147 x 122 | 0.66 | 89.7 | |
BRIDGELUX | SMD 5050 | 123 x 84 | 153 x 122 | 0.62 | 89.8 | |
OSRAM | DURIS S8 | 122 x 88 | 148 x 122 | 0.68 | 89.5 | |
CREE | XLAMP MHD-E | 126 x 86 | 147 x 132 | 0.52 | 90 | |
CREE | XLAMP MHBB | 122 x 87 | 147 x 123 | 0.62 | 89.7 |
